COMFORT~ONE™ HEATED FLOORS

Find a Dealer Need Help

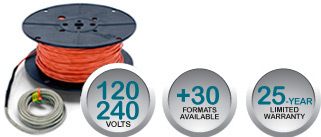

Offert en 120 V et 240 V + 30 formats offerts

Essential

  • Auxiliary heating or primary heating
  • Compatible with most floor coverings
  • Perfect for dry or wet environments
  • Energy-efficient alternative
  • Up to 28% energy savings*
  • Free of electromagnetic fields**
  • Reduction of dust and allergy risks
  • Does not dry out the air / ideal humidity rate
  • No exposed elements / more layout possibilities
  • No maintenance
  • Easy to install
  • Template available for each spacing mode
  • Single connection point (no return to the thermostat)
  • Combination of unequalled safety features
    • Oxygen-free copper heating element
    • Leakproof ETFE (ethylene tetrafluoroethylene) insulation
    • High-density polyethylene envelope
    • Protected and grounded from end to end
  • UL certified in North America
  • CSA approved (Canada and United States)

* In the room with the Comfort~One heated floor system.

** According to the installation method stipulated in our Installation Guide, the recorded EMF measurement is considered insignificant (between 0.25 mG and 0.5 mG).

Floors
Standard voltages: 120 and 240 V
Power : Spacing of 6.35 cm (2.5 in.) – 1.40 W/ft2
Spacing of 7.6 cm (3 in.) – 12 W/ft2
Spacing of 8.89 cm (3.5 in.) – 10.29 W/ft2
Spacing of 10.16 cm (4 in.) – 9 W/ft2
Thermostat connection : Single connection point (no return to the thermostat)
Non-heating cable : 3 m (10 ft): 2 conductors and grounds
Minimum bend radius: 2.54 cm (1 in.)
Maximum exposure temperature: (continuous and storage) 90°C (194°F)
Maximum installation temperature: 10 °C (50 °F)
Maximum reheater current : 11 A
Maximum circuit load : 16 A
Maximum circuit protection : 20 A circuit-breaker
Homologations : ULC certified in North America CSA Canada: auxiliary or primary heating. Approved for showers, dry and wet environments.
Warranty: 25 years
Installation surface
Floor covering
HEATING CABLE
Suggested spacing
Plywood
3
3
3,5
3,5
3,5
3,5
3,5
3,5
Smooth concrete
3
3
3,5
3,5
3,5
3,5
3,5
3,5
Concrete panels
3
3
3,5
3,5
3,5
3,5
3,5
3,5
Ceramic
3
3
3,5
3,5
3,5
3,5
3,5
3,5
Acoustic membrane
3
3
3,5
-
3,5
-
3,5
3,5
Anti-fracture membrane
3
3
3,5
-
3,5
-
3,5
3,5
Mortar bed
3
3
3,5
3,5
3,5
3,5
3,5
3,5
Scratch coat (preglazed mesh)
3
3
3,5
3,5
3,5
3,5
3,5
3,5
Sunroom / Solarium
2.5
2.5
3,5
3,5
3,5
3,5
3,5
2,5

*(preglazed mesh subfloor)
**(without rubber backing or underpad)
